D.LAB BTS-NPLUS3 Bluetooth Speaker Project

D.LAB New IPX6 Water and Dust Resistant Bluetooth Speaker BTS-NPLUS3 with Twin Built-in Speakers for High Fidelity music on the go!

After busy completing for my previous Kickstarter project D.LAB Sports Bluetooth Outdoor Speaker BTS-NPLUS2, i have embarked on a new project code named D.LAB Water Resistant Bluetooth Speaker BTS-NPLUS3. I’m pretty excited to share this new project because this Bluetooth speaker is really nice with a minimalist design and offers high fidelity sound reproduction. You can pair 2 speakers together simultaneously on one mobile phone via Bluetooth which gives you that extra boost in volume and bass on the go!

D.LAB BTS-NPLUS3 Water Resistant Speaker BTS-NPLUS3 will offer 3 PLUS features:

1. IPX6 rating water and dust resistance.

2. Ultra high fidelity sound reproduction

3. 12 hours continuous battery usage

*And to make it more accessible to use in multiple scenarios, we have included a free carabiner and a AUX in 3.5mm jack cable support.

<Connect BTS-NPLUS3 direct with the 3.5mm cable provided to any source to playback music>

<Bring BTS-NPLUS3 outdoors with carabiner for multi-purpose usage>

At the heart of this speaker is a robust 50mm 6W double wave-type diaphragm design internal speaker which offers exceptional sound reproduction at a frequency band between 150Hz to 17 KHz.

<Built in twin powerful speakers to deliver ultra high fidelity sound reproduction>

The built-in battery will use a polymer lithium battery that comes with a soft layer protective cover to ensure safe from knocks and prevent an explosion. The battery is 1,800mah. Charging the speaker will be around 3 hours while usage can last up to 12 hours.

<A built in safe 1,800mah polymer lithium battery delivers 12 hours of continuous usage>

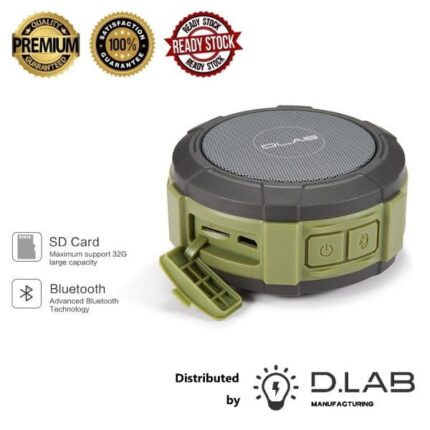

Apart from Bluetooth connection and 3.5mm Aux cable connection, you can also use Micro SD card direct playback.

<BTS-NPLUS3 supports Micro SD Card and 3.5mm Aux in>

BTS-NPLUS3 can also be used as a handsfree bluetooth speaker which also comes with Noise Cancellation Technology.

BTS-NPLUS3 is also a Bluetooth Handsfree Speaker!

<You can use BTS-NPLUS3 while driving!>

BTS-NPLUS3 can be connected to many different devices like handheld gaming consoles, tablets, laptops, desktop PCs, etc.

<Multiple device connections>

BTS-NPLUS3’s ring carabiner makes it easy to use for different scenarios.

<Carabiner included!>

BTS-NPLUS3 is easy to use with large key buttons.

<BTS-NPLUS3 is easy to use!>

**The SPECIAL feature of the NPLUS3 speaker is it’s ability to be able to connect two speakers simultaneously from one source to boost the sound volume and bass.

The design of BTS-NPLUS3 is very streamlined, minimalist and compact. It comes in 3 cool colors: Raisin Black, Light Grey and Rose Red. In terms of audio quality, it delivers exceptional sound quality, great for any music genre you prefer. It utilizes aluminium, natural fabric and soft polymer base which gives that rich sound and bass experience powered by twin built-in speakers.

At the beginning of 2019, we have done several 2D drawings before we proceed to work with our design engineers to create 3D design of BTS-NPLUS3. We replicated the 2D drawings with 3D CAD/CAM software to scale every detailed dimensions of the speaker structure before working on a 3D model prototype.

The main showcase of BTS-NPLUS3 is it’s twin speakers which can offer 6W high fidelity sound reproduction.

The speaker architecture comprise of:

a. Double wave diaphragm design which is actually a combination of aluminium, natural fabric and soft polymer base at the front of the speaker.

b. The design architecture of the diaphragm is two-fold, one which is fastened to the outer part of the speaker outer metal rim and the inner part fixed to an iron coil (field magnet) that feed electrical signals through the speaker cables into the coil.

c. With the double wave design, it effectively moves the coil and cone in a more stable motion and reproduces higher quality sound into the air.

After the 3D design is completed we start to assemble the prototype. We chose among several factories one which we believe can help to manufacture good quality speakers at a reasonable cost. We faced several challenges at a start due to minimizing the size of the twin speakers and at the same time fitting the cables and battery inside a small frame. But after a few weeks of improving and trying, we finally make it possible for BTS-NPLUS3

BTS-NPLUS3 is 1m drop resistant through a dual-layer ABS plastic with a softer outer layer and an inner hard layer around the speaker to minimize the impact. To do this, we source for good quality plastic molding factory to ensure the outer plastic encasement for BTS-NPLUS3 is robust and unbreakable.

BTS-NPLUS3 is IPX6 certified which offer:

Water-resistance – Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. Test duration: 1 minute per square meter for at least 3 minutes. Water volume: 100 litres per minute. Pressure: 100 kPa at distance of 3m

Finally get to enjoy BTS-NPLUS3 to the fullest!

Bring BTS-NPLUS3 to the pool side.

Bring BTS-NPLUS3 to the sea

Bring BTS-NPLUS3 to the beach

Bring BTS-NPLUS3 to a boat ride

Bring BTS-NPLUS3 to the golf course

Bring BTS-NPLUS3 to the village

Bring BTS-NPLUS3 to the resort

There are so many places which you can enjoy great music with BTS-NPLUS3. With every efforts and endeavor from our team to bring you good quality products, we hope you can contribute for our cause and bring good quality music at affordable prices to the international markets

Recently we have a review of BTS-NPLUS3 on Tech360.

https://tech360.tv/reviews/dlab-speakers-review/

Stay Tuned!
